Revision no.: 3 | Date: 29-08-2024

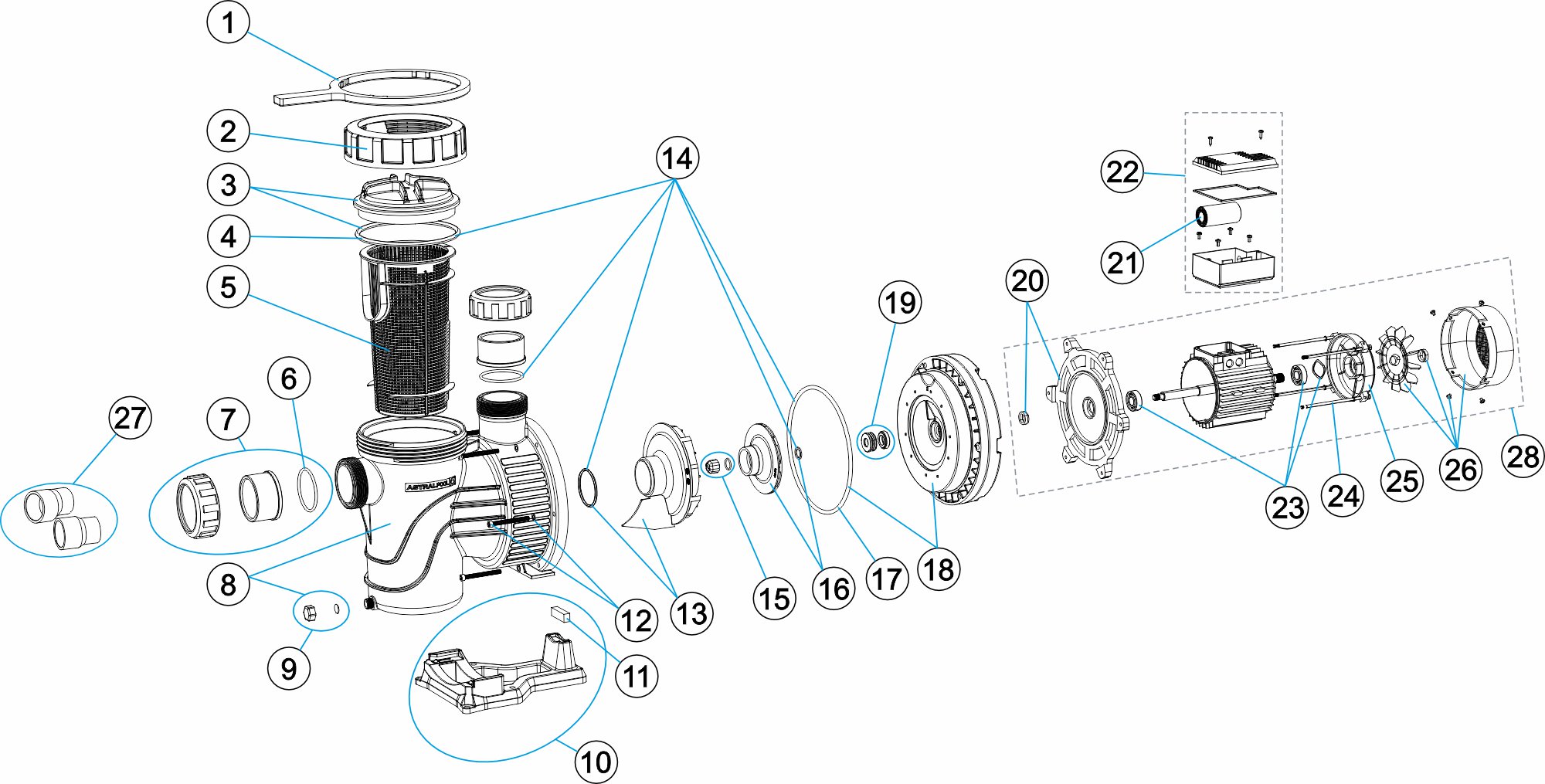

| POS. | CÓDIGO | DESCRIPCIÓN | ||
|---|---|---|---|---|
| 1 | 4404130103 | LID SPANNER |
|
|
| 2 | 4404130101 | PRE-FILTER COVER NUT |
|
|
| 3 | 4405010702 | PRE-FILTER COVER |
|
|
| 4 | 4405010178 | O' RING D 151,7X6,99 |
|
|
| 5 | 4405010105 | PRE-FILTER BASKET |
|
|
| 6 | 4405010907 | O' RING D 63X4 |
|
|
| 7 | 4405011104 | UNION FITTINGS D-50 (0,5 - 1 HP) |
|
|
| 8 | 4405010894 | PUMP HOUSING |
|
|
| 9 | 4405010587 | DRAIN PLUG |
|
|
| 10 | 4405010895 | PUMP BASE |
|
|
| 11 | 4405010898 | SILENTBLOCK (45X13X27) |
|
|
| 12 | 4405010590 | BODY FIXING SCREW |
|
|
| 13 | 4405010115 | DIFFUSEUR <=0,75 HP |
|
|
| 14 | 4405010899 | GASKETS |
|
|
| 16 | 4405010591 | IMPELLER ½ (II) HP |
|
|
| 17 | 4405010487 | O' RING |
|
|
| 18 | 4405010603 | MECHANICAL SEAL PLATE |
|
|
| 19 | 4405010118 | MECHANICAL SEAL |
|
|
| 20 | 4405011386 | FRONT MOTOR FLANGE | ||
| 21 | 4405011387 |
CONDENSER 14 μf CABLE
FOR 73676R0475 / 73676R0475E MOTOR |
||
| 22 | 4405010941 | TERMINAL BOX ASSEMBLY (MOTOR II) C.71 |
|
|
| 23 | 4405010135 | MOTOR BEARINGS < 1 HP |
|
|
| 24 | 4405010943 | C.71 REAR MOTOR COVER |
|
|
| 25 | 4405010951 | FAN COVER ASSEMBLY |
|
|
| 27 | 73676R0475 | MOTOR ½ CV II | ||
| 27 | 73676R0475E | MOTOR OPP 1/2 CV II |
