72549 - NAUTILUS SILENT PUMP

Revision no.: 0 | Date: 15-09-2023

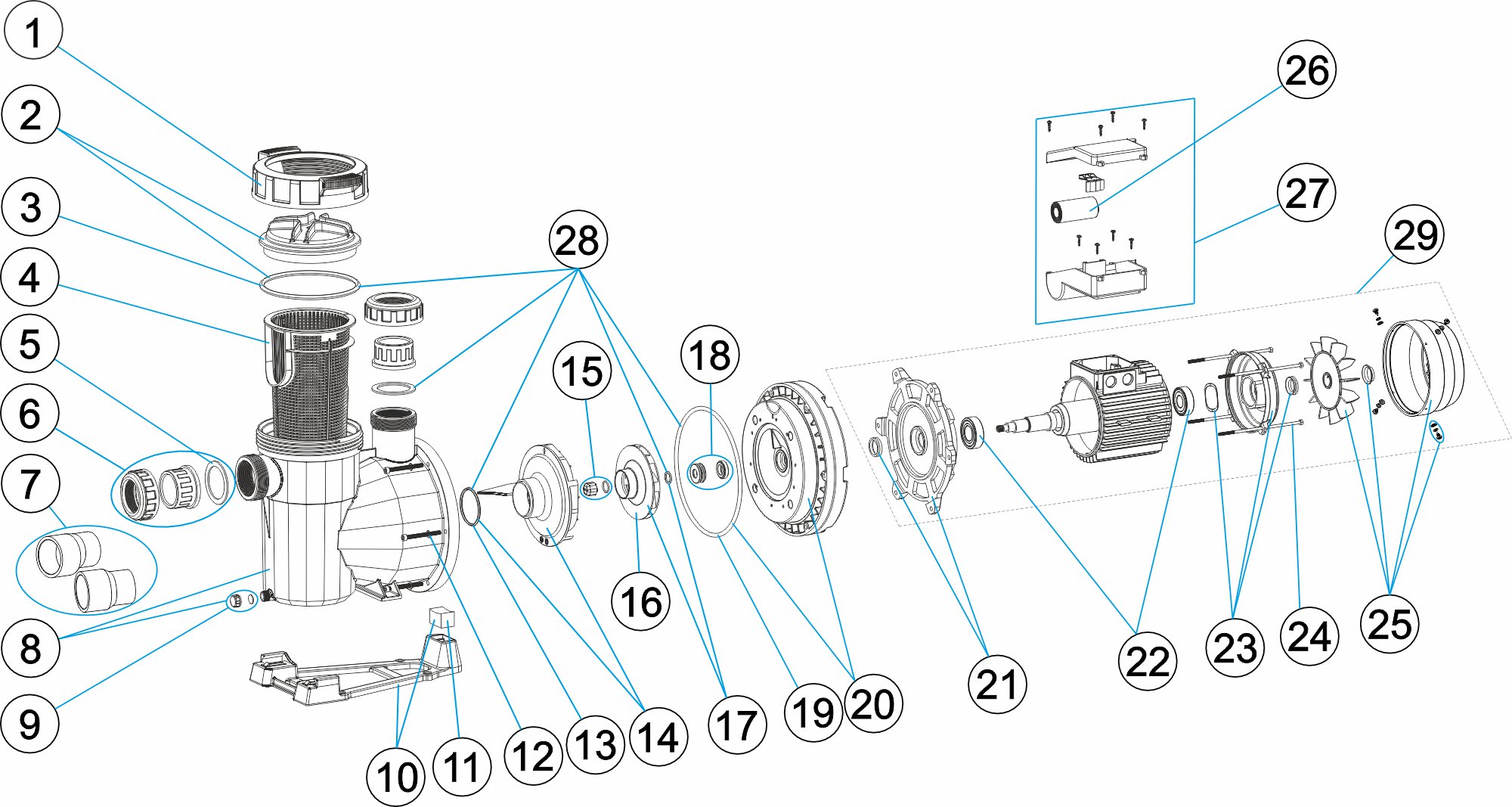

NAUTILUS SILENT PUMP

Piezas del despiece (kits o unitarios)

POS. CÓDIGO DESCRIPCIÓN
1 4405010585 PRE-FILTER COVER NUT
2 4405010702 PRE-FILTER COVER
3 4405010178 O' RING D 151,7X6,99
4 4405010105 PRE-FILTER BASKET
5 4405010179 INLET GASKET 72X55X2,5
6 4405010106 UNION FITTINGS <= 1 HP
8 4405010586 PUMP HOUSING
9 4405010587 DRAIN PLUG
10 4405010588 PUMP BASE
11 4405010112 PUMP BASE FITTINGS 0,75 - 1,5 HP
12 4405010590 BODY FIXING SCREW
13 4405010161 O' RING D. 56,7X3,5
14 4405010115 DIFFUSEUR <=0,75 HP
16 4405010591 IMPELLER ½ (II) HP
17 4405011401 MECHANICAL SEAL D-15
18 4405010487 O' RING
19 4405010603 MECHANICAL SEAL PLATE
20 4405010604 FRONT MOTOR FLANGE
21 4405010609 MOTOR BEARINGS < 1 HP
22 4405010612 MEC. MOTOR COVER C.71
23 4405010144 MOTOR TIES 0,75 - 1 HP
24 4405010635 FAN COVER ASSEMBLY
25 4405010149 CONDENSER 12 UF 1/2 CV
26 4405012047 TERMINAL BOX ASSEMBLY (MOTOR II) C.71
FOR VERNIS MOTOR
26 4405010154 TERMINAL BOX ASSEMBLY C. 63-71 II
FOR AURICPOOL MOTOR
27 65557R0475 MOTOR ½ HP II
