71791VH01 - COMPLETE HYDRAULIC LIFT

Revision no.: 0 | Date: 15-09-2023

COMPLETE HYDRAULIC LIFT

Piezas del despiece (kits o unitarios)

POS. CÓDIGO DESCRIPCIÓN
1 4401090501 FLAT ANCHOR D.43
    • 2 4401010008 TREAD BOLT SET
    • 3 4401070013 M-10X10 DIN-913 A4 STUD
    4 4401070016 D. 50 CAP
    5 4401070027 BOLT SET
    6 4401070015 SUCTION GUIDE 1,5 M.
    • 7 4401043409 ADAPTOR
    • 8 4401140019 STAINLESS 3-WAY VALVE
    • 9 4401050109 ROLLER BRAKE KNOB
    • 10 4401070014 VALVE HANDLE + BRAKE KNOB
    11 4401010057 FLANGE SET
    • 12 4401070011 D. 50 CAP WITH DRILL HOLES
    13 4401070004 LOWER CYLINDER STOP FOR D. 48.3
    • 14 4401070028 D. 48,3 GUIDE SOCKET
    • 15 4401011502 ELBOW AND FLANGE
    • 16 4401070002 D. 48,3 SEAL SUPPORT
    • 17 4401011509 LIFTER GASKET
    • 18 4401070001 INNER CYLINDER SPACER FOR D. 48.3
    • 19 4401011501 LIFTER GASKETS
    • 20 4401070000 SUPERIOR GUIDE COVER
    • 21 4401070006 HEAD SUPPORT
    • 22 4401070007 LARGE HEAD REST
    • 23 4401011518 SIÉGE
    • 24 4401070008 SAFETY BELT
    • 25 4401011507 CHAIR PLATE
    • 26 4401070009 MOVEABLE ARM
    27 4401140024 PROTECTIVE FOOT REST
    28 4401140023 SUPPORT BOLT SET

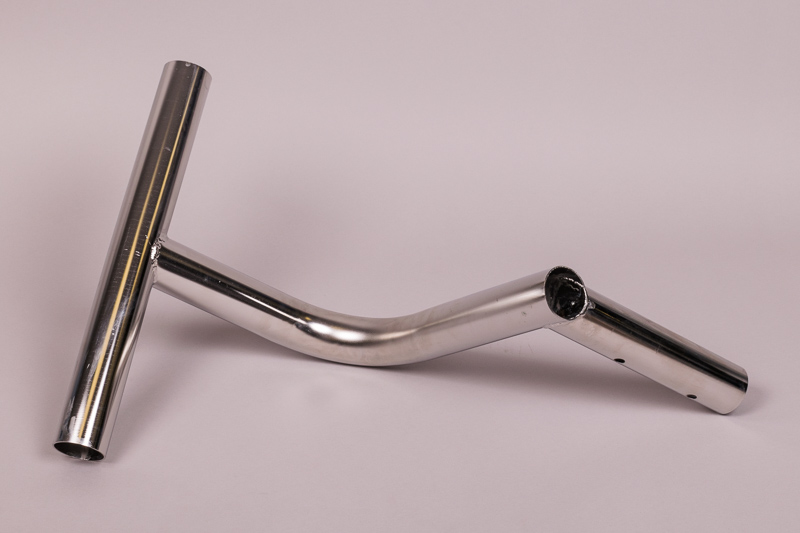

    29 71186R0200 FOOT REST BRACKET
    • 30 00141R0100 ANCHOR BODY
    • 31 M00282R0100 STRUCTURE TUBE
    32 M00282R0200 CROSS-PIECE
    • 33 M00282R0010 STRUCTURE SPACER TUBE
    34 M00282R0300 HORIZONTAL BAR
    • 35 4402050122 CUU REGULATOR VALVE
    FOR 1 METER
    • 35 4402050061 3 M. CUU REGULATOR VALVE
    FOR 3 METERS
    • 37 M00282R0150VH01 OPERATING BAR
    38 M00282R0700 GUIDE BAR FLANGE
    39 M00282R0006 PULL
    40 M00282R0600 WALL SUPPORT STRUCTURE
    • 41 M00283R0003 M-10 JOINING BAR

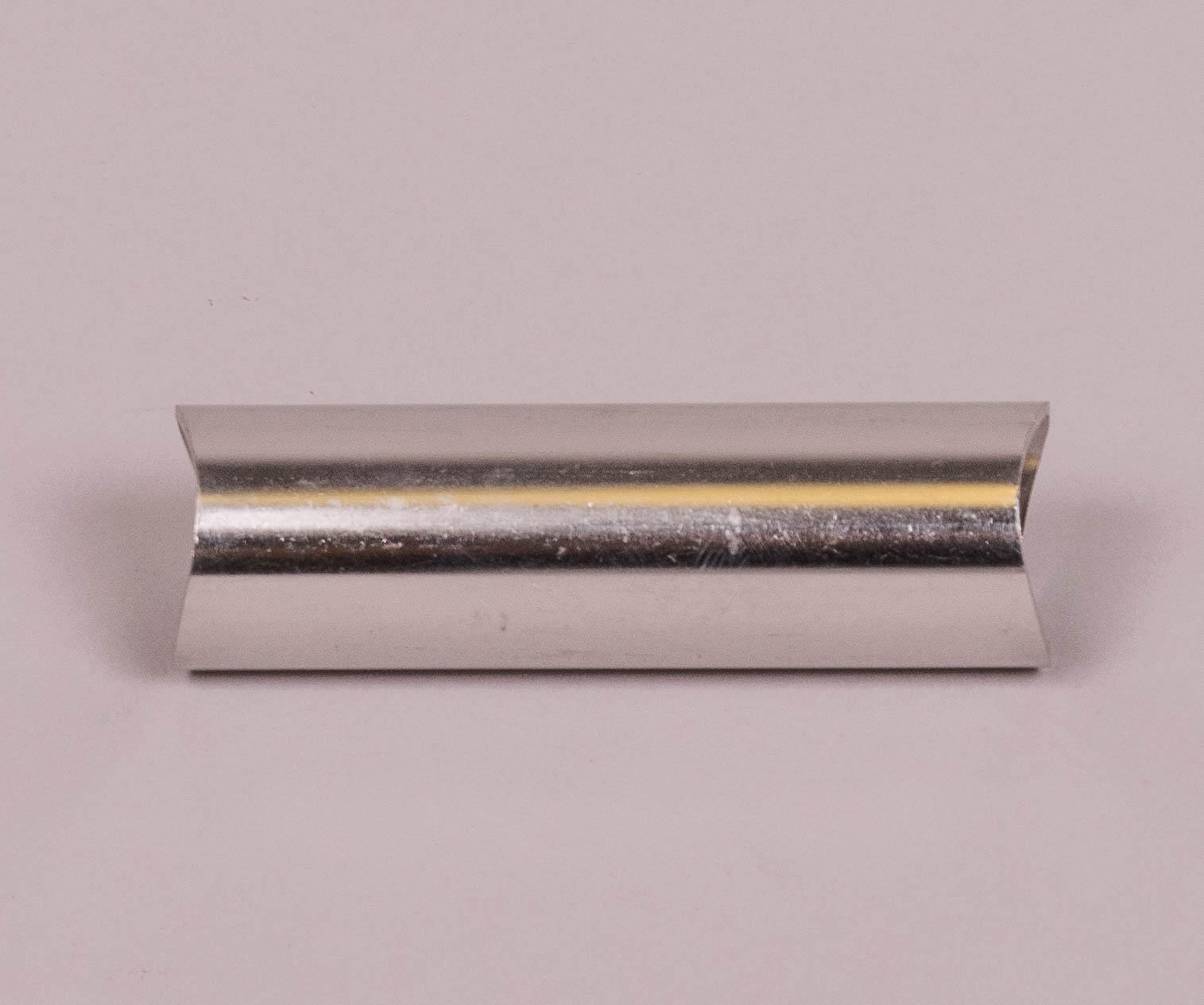

    • 42 M00283R0004 CYLINDER SPACER TUBE
    • 43 11277R0600 HYDRAULIC CYLINDER TUBE
    • 44 M00282R0400 CYLINDER BRACKET BAR
    • 45 H-002/13R0110 CYLINDER GUIDE TUBE
    46 M00282R0800VH01 VALVE SUPPORT FLANGE
    47 M00284R0200 CYLINDER FIXING CLAMP
    • 48 M00284R0100VH01 LIFT SEAT STRUCTURE
    49 M00282R0005 M-8 BAR
